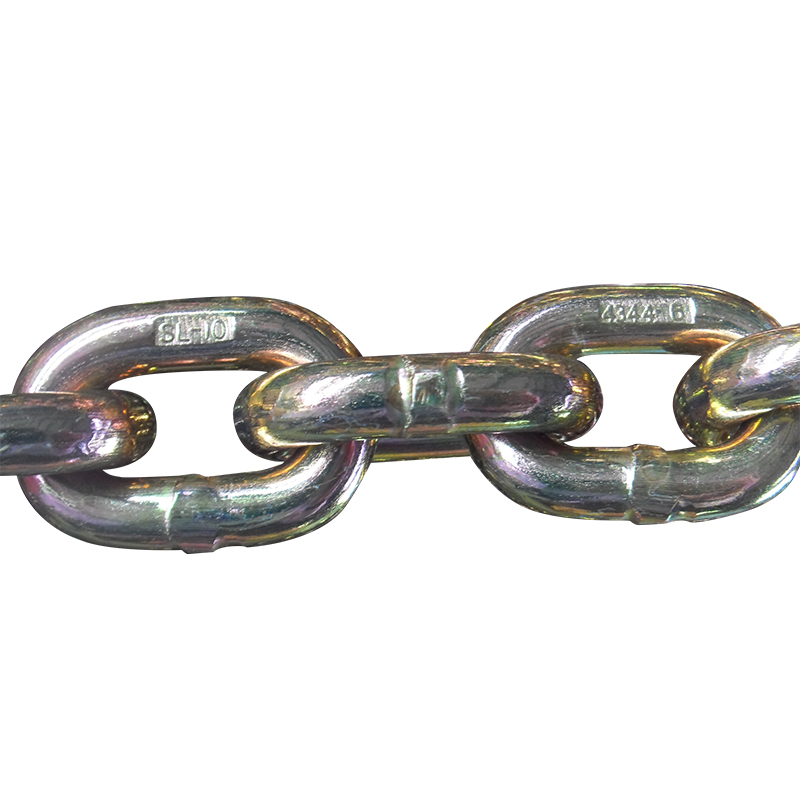

澳标链条
材质：碳钢Q235&Q195
表面处理：原色，电镀锌，热镀锌，发黑，喷塑，浸漆等。
包装：麻袋，缠轮，塑料桶，铁桶，木箱，纸箱等，打铁托。
澳标链条
1.SHORT LINK CHAIN
| CHAIN SIZE mm | WORKING LOAD MT | LINK DIMENSION | LINKS PERM pc | LENGTH PER 100KG | |||

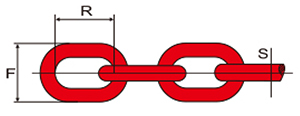

| S mm | R mm | F mm | B.F. m | H.D.G. m | |||
| 5 | 0.24 | 5 | 14.6 | 17.2 | 68.3 | 174 | 167 |
| 6 | 0.32 | 6.3 | 18.9 | 21.5 | 52.9 | 114 | 108 |
| 8 | 0.53 | 8.0 | 24.0 | 27.5 | 41.7 | 70.5 | 67.0 |
| 10 | 0.83 | 10.0 | 29.5 | 33.5 | 33.9 | 45.2 | 42.9 |
| 12 | 1.50 | 12.5 | 37.5 | 40.6 | 26.7 | 29.5 | 28 |
| 13 | 1.60 | 13 | 38.8 | 44.6 | 25.8 | 26.9 | 26.3 |
| 16 | 2.31 | 16 | 47.0 | 54.0 | 21.3 | 17.6 | 16.7 |
| 20 | 3.45 | 20 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| 22 | 4.55 | 22 | 64.9 | 77.0 | 15.4 | 9.5 | 9.2 |
| 24 | 5.43 | 24 | 71.0 | 82.2 | 14.1 | 7.8 | 7.6 |
2.MEDIUM LINK CHAIN
| CHAIN SIZE mm | WORKING LOAD MT | LINK DIMENSION | LINKS PERM pc | LENGTH PER 100KG | |||
| S mm | R mm | F mm | B.F. m | H.D.G. m | |||
| 3 | 0.06 | 3.15 | 15.7 | 13.1 | 63.8 | 511 | 498 |
| 4 | 0.11 | 4.00 | 18.6 | 16.0 | 53.9 | 320 | 305 |
| 5 | 0.19 | 5.00 | 22.0 | 19.4 | 45.4 | 203 | 193 |
| 6 | 0.32 | 6.30 | 26.1 | 23.5 | 37.8 | 129 | 120 |
| 8 | 0.53 | 8.00 | 32.2 | 29.5 | 31.0 | 77.8 | 74.1 |
| 10 | 0.83 | 10.0 | 39.1 | 36.2 | 25.0 | 48.5 | 47.1 |
| 12 | 1.35 | 12.0 | 46.0 | 44.0 | 21.7 | 34.0 | 33.3 |
| 13 | 1.50 | 13.0 | 49.1 | 46.1 | 20.3 | 29.7 | 27.7 |
| 16 | 2.31 | 16.0 | 59.6 | 56.5 | 16.8 | 20.2 | 18.2 |
| 20 | 3.67 | 20.0 | 73.3 | 70.0 | 13.6 | 12.3 | 11.6 |
| 24 | 5.31 | 24.0 | 87.0 | 83.6 | 11.5 | 8.5 | 8.04 |
3.LONG LINK CHAIN
| CHAIN SIZE mm | WORKING LOAD MT | LINKDIMENSION | LINKS PERM pc | LENGTH PER100KG | |||
| S mm | R mm | F mm | B.F. m | H.D.G. m | |||
| 3 | 0.05 | 3.15 | 22.1 | 15.7 | 45.3 | 555 | 526 |
| 4 | 0.09 | 4.00 | 25.4 | 18.6 | 39.3 | 345 | 323 |
| 5 | 0.19 | 5.00 | 29.3 | 21.8 | 34.1 | 217.0 | 206.0 |
| 6 | 0.32 | 6.30 | 34.5 | 26.1 | 29.0 | 135.0 | 128.0 |
| 8 | 0.53 | 8.00 | 41.2 | 31.9 | 24.3 | 82.2 | 78.1 |
| 10 | 0.83 | 10.00 | 49.0 | 38.7 | 20.4 | 52.9 | 50.2 |
4.GRADE70 CHAIN
| CHAIN mm | LINKDIMENSION | WEIGHT PERM kg | LENGTH PER 500kg m | LENGTH PER 500kg m | BREAKING STRENGTH kn | ||
| S mm | R mm | F mm | |||||
| 6 | 6.0 | 18.9 | 22.05 | 0.80 | 625 | 62.5 | 44.1 |
| 7 | 7.0 | 21.3 | 24.85 | 1.10 | 460 | 46.0 | 55.9 |
| 7.3 | 7.3 | 24.0 | 26.6 | 1.16 | 430 | 43.0 | 56.9 |
| 8 | 8.0 | 24.0 | 28.0 | 1.43 | 350 | 35.0 | 73.6 |
| 10 | 10.0 | 30.0 | 35.0 | 2.23 | 225 | 22.5 | 118.0 |
| 13 | 13.0 | 39.0 | 45.5 | 3.75 | 134 | 13.4 | 176.0 |
5.GRADE L CHAIN
| Chain size mm | WLL ton | S mm | R mm | F mm | Links/meter | Self Color Meters/100kg | HD Galv Meters/100kg |
| 5 | 0.25 | 5.0 | 14.6 | 17.2 | 68.3 | 174 | 167 |
| 6 | 0.40 | 6.3 | 18.8 | 21.6 | 53.2 | 116 | 110 |
| 8 | 0.64 | 8.0 | 23.8 | 27.0 | 42.0 | 71.4 | 69.9 |
| 10 | 1.00 | 10.0 | 29.8 | 34.3 | 33.6 | 44.8 | 43.9 |
| 13 | 1.70 | 13.0 | 38.8 | 44.6 | 25.8 | 28.9 | 26.3 |
| 16 | 2.58 | 16.0 | 47.8 | 54.8 | 20.9 | 17.8 | 17.5 |
| 20 | 4.03 | 20.0 | 59.2 | 68.5 | 16.9 | 11.3 | 11.1 |
| 22 | 5.06 | 22.0 | 64.9 | 77.0 | 15.4 | 9.5 | 9.2 |
| 24 | 5.61 | 24.0 | 71.0 | 82.2 | 14.1 | 7.8 | 7.6 |
